Voltage stabilization
Localized voltage support and transient mitigation.
Produktark eqGrid
Utbedrer spenningskvalitet og leverer ekstra effekt ten tradisjonell nettforsterkning
eqGrid hjelper nettselskaper med å øke tilgjengelig effekt, forbedre spenningskvalitet og redusere behovet for nettforsterkning i svake distribusjonsnett.
Denne produktsiden beskriver elektriske egenskaper,batterisystem, kommunikasjonsgrensesnitt,driftsmodi og teknisk integrasjon.
eqGrid fungerer frittstående, og slik at et overordnet system kontrollerer mange systemer.
Key capabilities
Core functions provided by each eqGrid unit and by coordinated deployments.
Phase balancing
Improved feeder symmetry and reduced imbalance.
Operational continuity
Hybrid on-grid/off-grid operation for critical distribution environments.
Topology flexibility
TN, IT and split-phase compatibility through configurable transformer topology.
Distributed architecture
Multi-node coordination and resilient edge deployment with separated downstream load segments per eqGrid unit.
Utility integration
SCADA, fieldbus and edge messaging support through established protocols.
Electrical characteristics
Grid and load interface ratings for localized resilient edge operation.
The system supports up to 80 A three-phase TN grid and load interfaces, while localized stabilization and transient balancing are supported through an integrated low-voltage battery subsystem.
Grid interface
| Parameter | Value |
|---|---|
| Grid interface | Up to 80 A three-phase TN |
| Load interface | Up to 80 A three-phase TN |
| Supported topologies | TN, IT, split-phase |
| Frequency | 50 Hz |
| Single-phase support | Yes |
| Three-phase support | Yes |
Important deployment constraint
When multiple eqGrid units are connected to the same upstream supply, the downstream loads must be electrically separated per eqGrid unit. Multiple eqGrid units must not operate in parallel on a common downstream load bus unless this has been specifically engineered and approved for the installation.
This requirement ensures predictable voltage stabilization, phase balancing and protection coordination for each local grid segment.
Voltage stabilization
| Parameter | Value |
|---|---|
| Voltage adjustment | Interruption-free |
| Standard adjustment steps | ±5% |
| Custom step configuration | Available on request |
| Voltage adjustment technology | Patented switching technology |

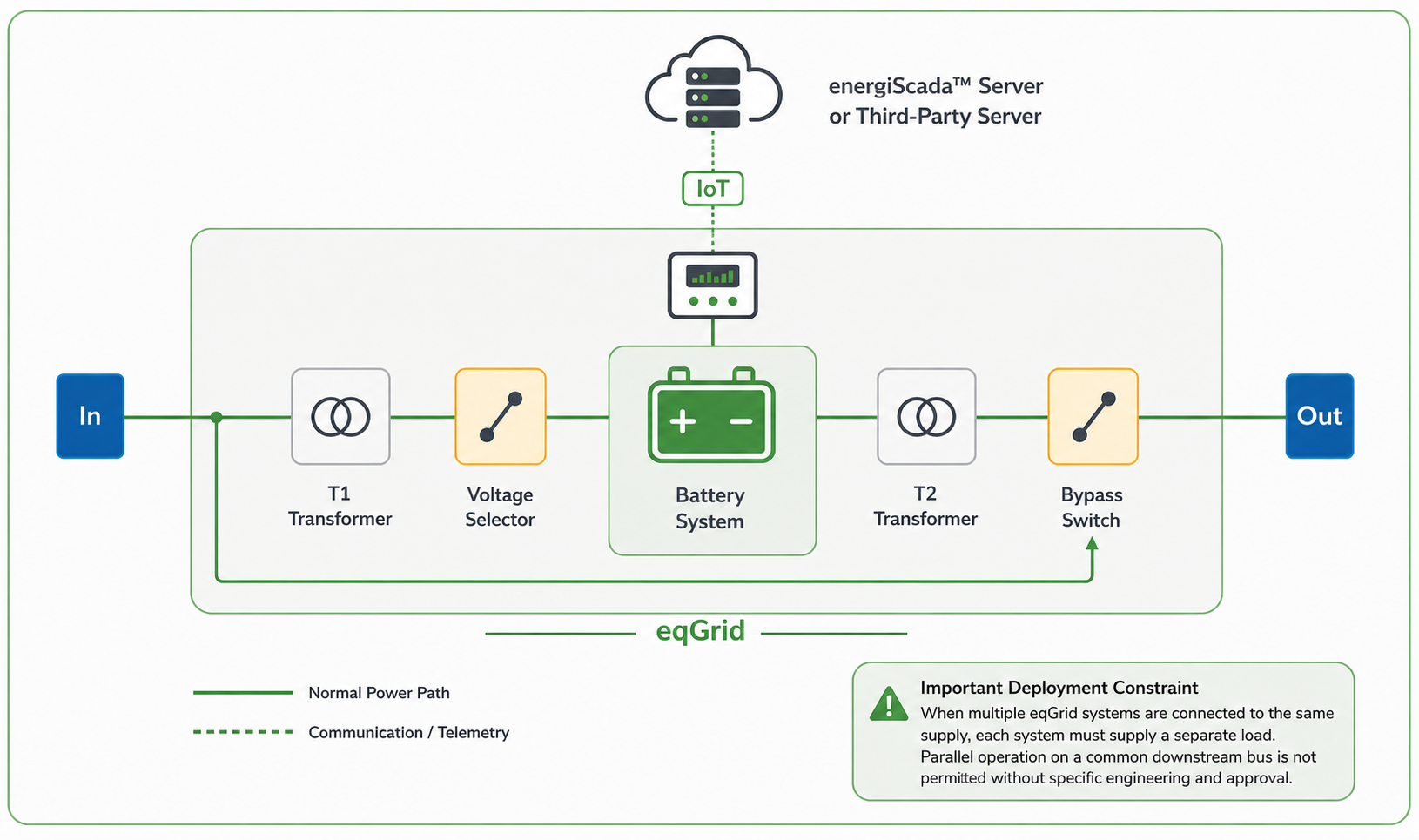

T1 enables internal TN400V operation across multiple upstream grid topologies including TN, IT and split-phase systems. Where required, T2 can restore the original downstream topology while maintaining localized stabilization and operational continuity.
T1 transformer, voltage selection, battery support and optional T2 topology restoration.
Battery subsystem
| Parameter | Value |
|---|---|
| Battery voltage | 48 V LV |
| Standard capacity | 15 kWh |
| Expandable capacity | Up to 75 kWh |
| External battery support | 48 V AGM |
Power capability to/from battery
| Parameter | Value |
|---|---|
| Continuous battery power | 13.5 kW |
| 30 min overload | 18 kW for up to 30 minutes |
| 5 s transient support | 36 kW for up to 5 seconds |
Designed for operation in environments experiencing short-duration voltage events below EN50160 levels, including events around 10 ms duration.
Communication & integration
| Interface | Description |
|---|---|
| WAN | 4G / 5G |
| Ethernet | RJ45 |
| Field interfaces | RS485 / RS232 / CAN |
| External IO | Digital and analog IO |
Supported protocols
- Modbus RTU
- Modbus TCP
- MQTT
- IEC 60870-5-104
- IEC 61850 — roadmap
Operating modes
| Mode | Supported |
|---|---|
| On-grid | Yes |
| Off-grid | Yes |
| Hybrid operation | Yes |
| Parallel operation | Yes, with separate downstream load segments unless installation-specific parallel bus operation is engineered and approved |
| Black start capable | Yes |
| UPS-like transition support | Yes |
Mechanical characteristics
| Parameter | Value |
|---|---|
| Example enclosure | Outdoor freestanding rack |
| Example dimensions | 100 × 80 × 200 cm |
| Example weight | Approx. 600 kg |
Example dimensions shown for a three-phase IT outdoor configuration.
Compliance & standards
- EN50160
- EN50549-1
- Designed for compliance with relevant EMC requirements for industrial and utility-connected equipment
- Built using CE-marked components

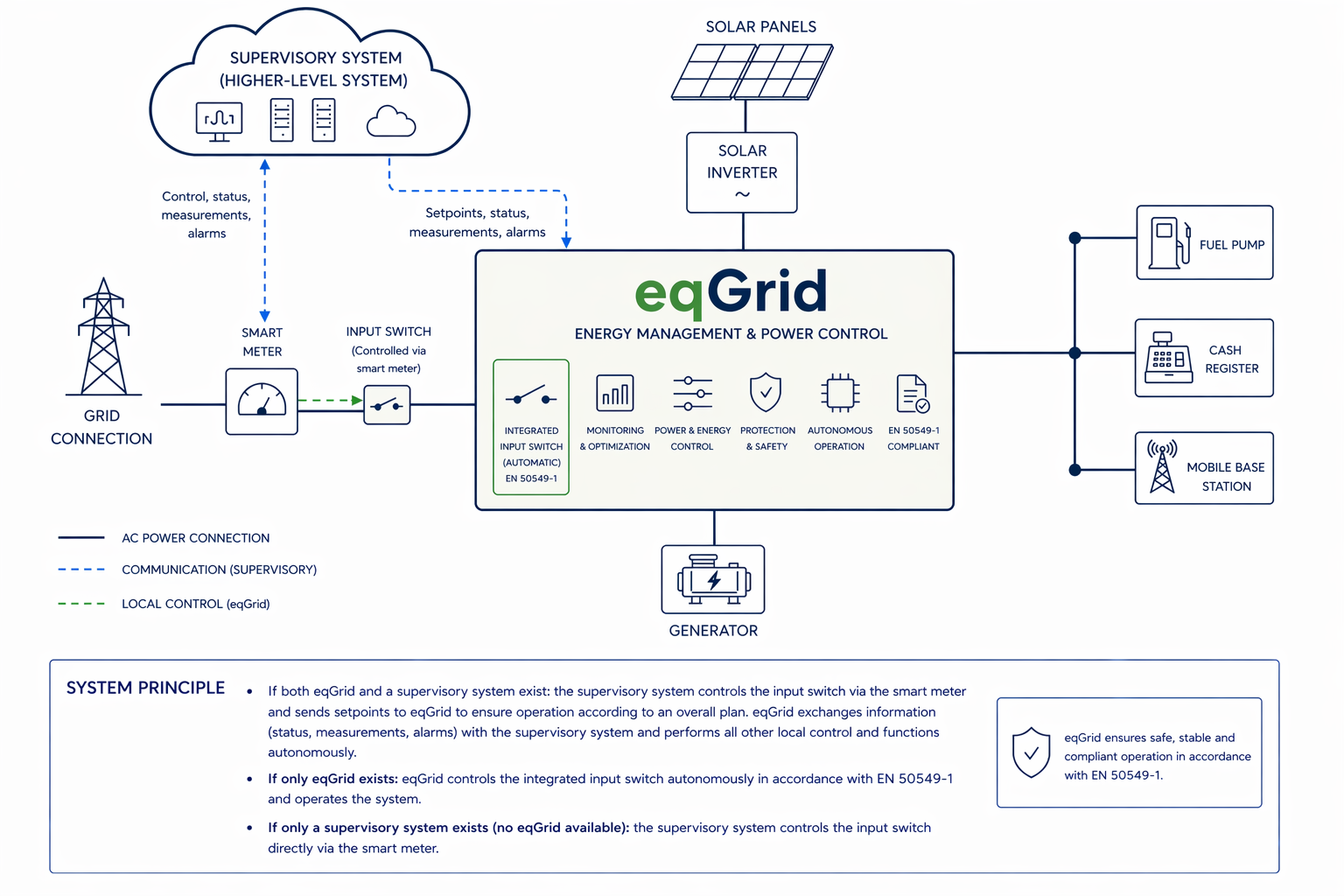

Distributed resilient edge architecture
Multiple eqGrid systems can be coordinated across feeders and operationally critical distribution segments to improve resilience, voltage quality and localized continuity. When units share the same upstream supply, each unit requires a separate downstream load segment.
Contact eqGrid for integration, deployment and configuration information.
